উৎপত্তি স্থল: | শেনজেন, চীন |
---|---|
পরিচিতিমুলক নাম: | RAYMO |
সাক্ষ্যদান: | CE, ROHS2.0, SGS, REACH, ISO9001:2015 |
Model Number: | RM-S-0T1C-P02JS52 |
ন্যূনতম চাহিদার পরিমাণ: | 1 পিসি |
মূল্য: | $3.98-$13.59 per piece |
প্যাকেজিং বিবরণ: | 100 পিসি/সিটিএন |
ডেলিভারি সময়: | 2-7 কার্যদিবস |
পরিশোধের শর্ত: | এল/সি, ডি/এ, ডি/পি, টি/টি, ওয়েস্টার্ন ইউনিয়ন, মানিগ্রাম |
যোগানের ক্ষমতা: | প্রতি সপ্তাহে 50000pcs |
লোগো মুদ্রণ: | কাস্টমাইজড | রঙ: | সিলভার ক্রোম |
---|---|---|---|
লিঙ্গ: | পুরুষ | আবেদন: | ক্যামেরা |
অন্তরক উপাদান: | পিপিএস | ||
বিশেষভাবে তুলে ধরা: | waterproof wire connectors,waterproof cable connector |

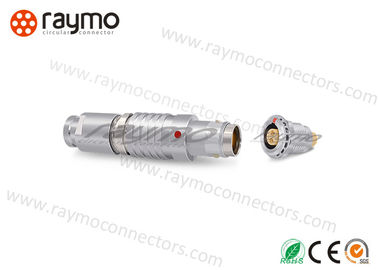

Push Pull Waterproof Connector, RM-T series Straight Plug For Camera Device
Main Features listed below:
Connector Descitption Details: | |||
Shell model | Straight plug FGG | Shell size | 0T 1T 2T |
Gender | Male | Contact No. | 2,3,4,5,6,7,8,9,10,12,14,16,19, |
MOQ | 1pc | Delivery | 2-5 working days |
Endurance(shell) | 5000 mating cycles | Humidity | up to 95% at 60° C/140F |
Technical Characteristics | |||
Temperature Range | - 65° C, +200° C | Resistance to vibrations | 15 g [10 Hz - 2000 Hz] |
Shock Resistance | 100 g [ 6 ms] | Salt spray corrosion test | >144hr |
Climatical Category | 50/175/21 | Shielding (min) | > 75 dB [ at 10 MHz], > 40 dB [ at 1 GHz] |
IP Rating | IP 68 | Certifications | ISO9001 CE ROHS SGS |
Shell Size | Contact No. |
0T | 2,3,4,5,6,7,9 |
1T | 2,3,4,5,6,7,8,10,12,14,16 |
2T | 2,3,4,5,6,7,8,10,12,14,16,19,21,24,26 |
1. Does your prct have any warranty?
Raymo: Yes, all of our connectors can work normally after 5000 cycles mating; our factory has instruments to tested them beforeshipping.
Damage due to misuse, treatment and unauthorized modifications and repairs are not covered by our warranty.
2. Are your company a professional manufacturer?
Raymo: Yes, we specialized in prcing circular push pull connectors and cable assembly since 2010.
Our factory is SGS audited manufacture and worked on www.alibaba.com more than 4 years.
3. What is the MOQ?
Raymo: No MOQ limited, small order is accepted, all is depend on customer real needs.
4. Free sample :
RAYMO: Available. Any needs, please contact us:
5. What about the delivery time?
Raymo: sample for 1-2 working days, mass prction for 5-10 working days.
6.What is your payment terms?
Raymo: 100% T/T deposit when customer place order.
