Name: 50ohm 75ohm Half Moon Connector , Coax Cable Ends ERA EPL ERD 00 Series
Brand: Shenzhen Raymo Electronics Technology Limited
SKU: EPL.00.250.CLL
Price: 12.30 USD
Availability: InStock

50ohm 75ohm Half Moon Connector , Coax Cable Ends ERA EPL ERD 00 Series

বেসিক ইনফরমেশন

উৎপত্তি স্থল:	শেনজেন, চীন
পরিচিতিমুলক নাম:	RAYMO
সাক্ষ্যদান:	CE, REACH, ISO:9001-2015
Model Number:	EPL.00.250.CLL

ন্যূনতম চাহিদার পরিমাণ:	১ টুকরা/টুকরা
মূল্য:	negotiable
Packaging Details:	Plastic Bag & Carton
ডেলিভারি সময়:	5-7 কার্যদিবস
Payment Terms:	T/T, Western Union, D/A, D/P,L/C, MoneyGram
যোগানের ক্ষমতা:	৫০০০ টুকরা/সপ্তাহ

এখন যোগাযোগ

Shell size:

00S, 0S, 1S, 2S

Model:

Elbow socket for printed circuit

Series:

Lemo EPL Elbow (90°) plug

Contact no.:

50ohm and 75ohm coaxial is avaialble

Other type ccpnnectors:

ERA, ERD,EPE

Insulator:

PPS, PEEK

বিশেষভাবে তুলে ধরা:

pcb contacts connector

cable to cable connector

Our Company

SHENZHEN RAYMO ELECTRONICS TECHNOLOGY LIMITED is a manufacturer located in Shenzhen, focusing on manufacturing mental and plastic circulor push-pull connectors and cable assemblies to serve over 75 countries and regions since 2010.Prcts can be 100% compatible with original ones(LEMO,FISCHER,HIROSE,BINDER SERIES)

LEMO coaxial connectors, half moon connector, ERA EPL ERD 00 Series with 50ohm, 75ohm, Elbow socket for printed circuit

Prct Description

RM-S series Elbow (90°) socket for printed circuit (solder or screw fixing), Lemo EPL Elbow (90°) SOCKET, coaxial contacts

Part No.	FPL.00.250.CLL
Description:	fixed socket, nut fixing, 00S series, multipole type with 50ohm coaxial contacts, outer shell in chrome-plated brass, PPS insulator

Techinical Characteristics

Temperature Range	- 55° C, +200° C	Resistance to vibrations	10-2000 Hz, 15g
Shell Material	Brass with chrome plated	Humidity	up to 95% at 60° C
Shock Resistance	100 g, 6 ms	Salt spray corrosion test	>96hr
Climatical Category	50/175/21	Shielding (min)	> 75 dB [ at 10 MHz], > 40 dB [ at 1 GHz]
IP Rating	IP 50	Endurance(shell)	≥5000 mating cycles

Main Feature

1	can be 100% compatible with original Lemo connector
2	Secure high performance push-pull Self-locking system
3	polarisation by stepped insert (half-moon)
4	360° screening for full EMC shielding
5	can plated with white or black chrome
6	Certificate:ISO:9001-2015, CE ,RoHS2.0, SGS, Reach

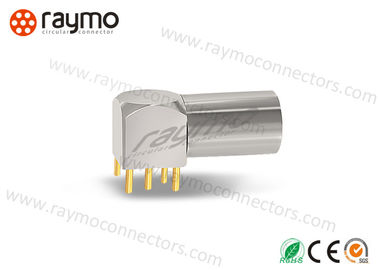

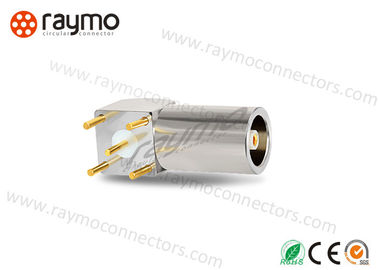

Prct Picture

50ohm 75ohm Half Moon Connector , Coax Cable Ends ERA EPL ERD 00 Series 0

Application

Raymo's connectors can be used in below Application:
Communications, Automotive, Industrial Control, Audio-video, Aviation, Information Systems, and Machines, Medical, Military, Test and Measurement, Data Acquisition, Data Transfer Equipment. Mle Power, Sensor,Sensor Systems Instrumentation, Analysis Application

Our Exhibition

2020.11	Electronica Munich, Germany
2019 9.24-9.26	Testing Expo, Shanghai
2018 11.12-11.15	Electronica Munich, Germany
2017 9.11-9.16	NAB Show,Netherlands
2016 4.11-4.15	HK Fair
2015 10.2-10.7	ICEEB, Brasil
2014 10.11-10.15	HK Fair
2014 4.11-4.15	HK Fair

Why Choose US?

100% compatible with lemo, , fischer connector
All the prcts we got CE, ROHS, SGS,ISO9000 certificate
Help you save your cost
Fast delivery: 2-15 working days
Cable assembly offer, help you save prction time

Except connectors,we do cable assemble for circular connectors too.Just tell us your need, leave the rest to RAYMO!
Solve the original brand's high cost and long lead time!
