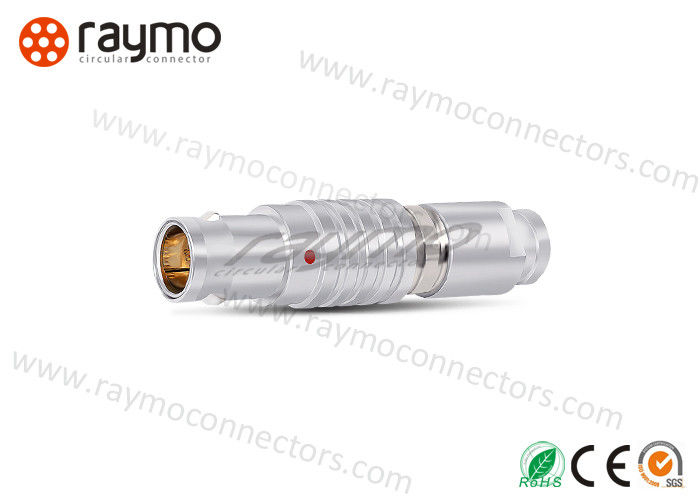

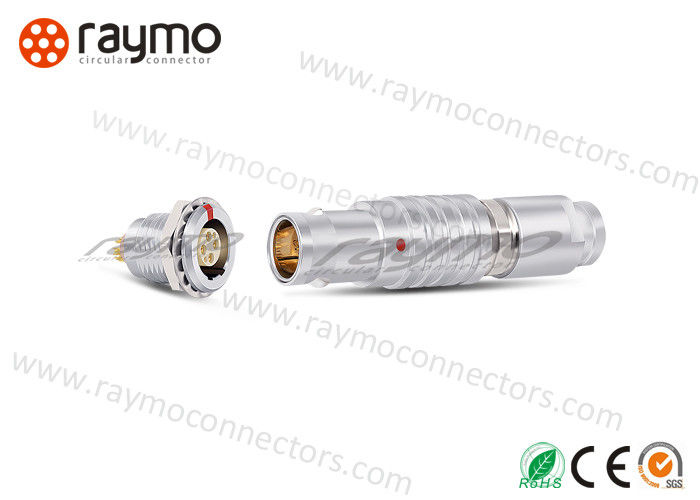

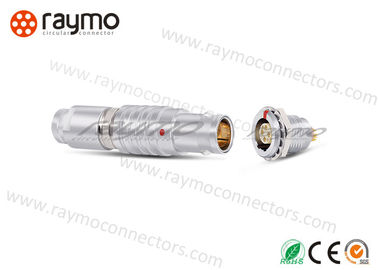

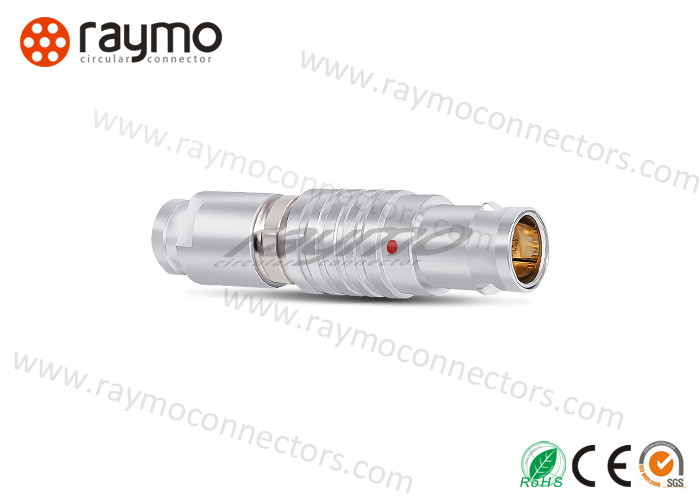

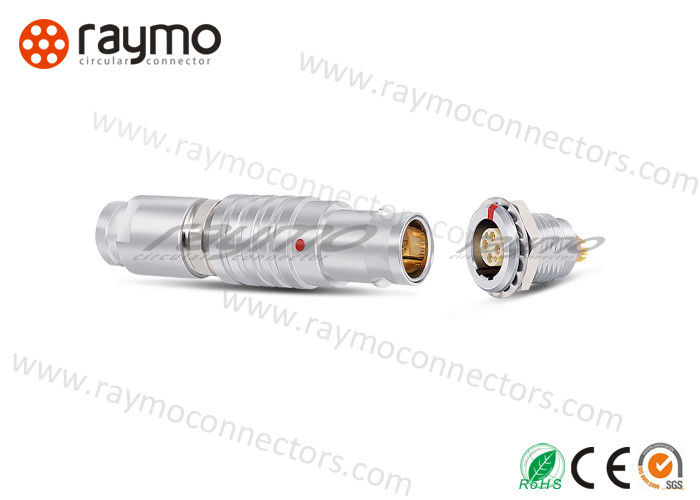

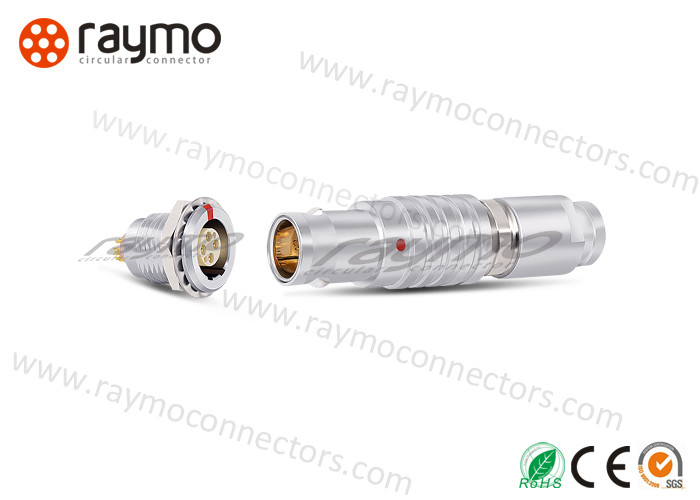

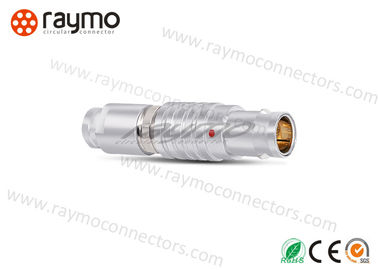

Name: 8 Pin Circular Push Pull Connectors , Female Pin Connector Replace LEMOS FGJ FHJ PHJ
Brand: Shenzhen Raymo Electronics Technology Limited
SKU: FNG.1B.302.CLAC52Z
Price: 11.10 USD
Availability: InStock

8 Pin Circular Push Pull Connectors , Female Pin Connector Replace LEMOS FGJ FHJ PHJ

বেসিক ইনফরমেশন

উৎপত্তি স্থল:	শেনজেন, চীন
পরিচিতিমুলক নাম:	RAYMO
সাক্ষ্যদান:	RoHS2.0, ISO:9001-2015, CE , SGS, REACH
Model Number:	FNG.1B.302.CLAC52Z

ন্যূনতম চাহিদার পরিমাণ:	5 পিস/পিস
মূল্য:	negotiable
Packaging Details:	Plastic Bag & Carton
Delivery Time:	5-7wds
পরিশোধের শর্ত:	ওয়েস্টার্ন ইউনিয়ন, এল/সি, ডি/এ, ডি/পি, টি/টি
যোগানের ক্ষমতা:	৫০০০ টুকরা/সপ্তাহ

এখন যোগাযোগ

প্রকার:

বৃত্তাকার ধাক্কা টান সংযোগকারী

শেল আকার:

1 বি

Contact no.:

2.3.4.5.6.7.8.9.10.14.16 pins

অন্তরক:

পিপিএস/পিক

আইপি র‌্যাঙ্কিং:

আইপি 50

Endurance:

5000 times push pull

বিশেষভাবে তুলে ধরা:

electronics component connectors

electronic cable connectors

Replace LEMOS FGJ FHJ PHJ 1B Female 8 Pin Circular Push Pull Connector for ARRI Alexa Mini FGJ.1B.308

Parts Description

RAYMO P/N	Lemo P/N
RM-FGJ-1BC-308-JS52Z	FGJ.1B.308.CLAC52Z

2 keys, 45 degrees, 1B shell size with 8 poles female solder contacts
Circular connectors Cable Straight Connector
Different shell size from 00B to 4B

Technical Characteristics

Temperature Range	- 40° C, +125° C	Resistance to vibrations	15 g [10 Hz - 2000 Hz]
Shell Material	Brass with chrome plated	Humidity	up to 95% at 60° C/140F
Shock Resistance	100 g [ 6 ms]	Salt spray corrosion test	>144hr
Climatical Category	50/175/21	Shielding (min)	> 75 dB [ at 10 MHz], > 40 dB [ at 1 GHz]
IP Rating	IP50	Endurance(shell)	5000 mating cycles

Main Features

Size/Series	0B/1B/2B/3B/4B (Metal (Mechanical Keying))
Shell Style/Model	Ebow 90 degree plug
Keying	1 key (alpha=0, plug: male contacts, receptacle: female contacts)
Housing Material	Brass (chrome plated) shell and collet nut, nickel plated brass latch sleeve and mid pieces
Configuration	Brass (gold plated)
Insulator	PPS
Contact Type	Solder
Endurance (Shell)	5000 mating cycles
Temp (min)	-40 deg
Temp (max)	125 deg C
Humidity (max)	<=95% [at 60 deg C / 140 F]
Vibration	15 g [10 Hz - 2000 Hz]
Shock Resistance	100 g [ 6 ms]
Salt Spray Corrosion	>144 hr
IP Rating	50

Company Intrce

RAYMO is a manufactuer that:

Focus on manufacturing & exporting various metal & plastic circular push pull connectors, cable assembly.
Can be 100% compatible with original LEMO • •FISCHER• HIROSE • BINDER •Military 38999
Series has RM-B, RM-K, RM-S, RM-F,RM-E,RM-HR10A, RM-P, RM-M4, RM-M12, RM-M16, BNC, B680,B423 , 38999, 26482
CO, Form A, Form E for customer clearance
CE, ROHS, REACH, ISO:90001-2015, SGS Audited manufacturer
All the items can work normally after 5000times mating

Application

Medical like Diagnostic devices
Instrumentation like Test & measurement
Transport Avionics
Energy like Nuclear
Defense & Security like Communication systems
Broadcast like Studios and outside broadcasting
Extreme like Motorsports

Contacts ans shell size

Shell size	Contacts no. ( Both with Solder & PCB type )
Shell size	Contacts no. ( Both with Solder & PCB type )
RM-00	2	3	4
RM-0B	2	3	4	5	6	7	9
RM-1B	2	3	4	5	6	7	8	10	12	14	16
RM-2B	2	3	4	5	6	7	8	10	12	14	16	19
RM-3B	3	4	6	8/(6+2)	9(8+1)	10	12	14(13+1)	14	16	18	21	26	30	32
RM-4B	7	10	24

Dimensions and Keying

8 Pin Circular Push Pull Connectors , Female Pin Connector Replace LEMOS FGJ FHJ PHJ 0

8 Pin Circular Push Pull Connectors , Female Pin Connector Replace LEMOS FGJ FHJ PHJ 1

Certificate

CE
REACH
RoHS
ISO9000-2015

Advantages

Sample Free:1-2 PCS
Fast lead time: 3-5 work days if the QTY is under 200 PCS
Flexiblity payment way:T/T,PayPal,Westunion,Credit card
24 hours service for clients
Competitive price & stable prction
Certified CE and RoHS
OEM/ODM/Cable Assemble
World-class customer service

RFQ

1. Are your company a professional manufacturer?
Raymo: Yes, we specialized in prcing circular connectors and cable assembly since 2010.Our factory is SGS audited manufacturer and worked on www.alibaba.com more than 9 years.
2. What is the MOQ?
Raymo: No MOQ limited, small order is accepted, all is depend on customer real needs.
3. Free sample :
Raymo: Available. Any needs, please contact us.
4. What about the delivery time?
Raymo: sample for 3-5 working days, mass prction for 5-7 working days.
5. What is your payment terms?
Raymo: 100% T/T deposit when customer place order.
6. Does your prct have any warranty?
Raymo: Yes, all of our connectors can work normally after 5000 cycles mating; our factory
has instruments to tested them before shipping.
Damage due to misuse, treatment and unauthorized modifications and repairs are not covered by our warranty.

If you couldn't find exact items you want,PLS kindly email us exact models you need, best price & each model specification details will be provided to you soon. Solve the original brand's high cost and long lead time!
