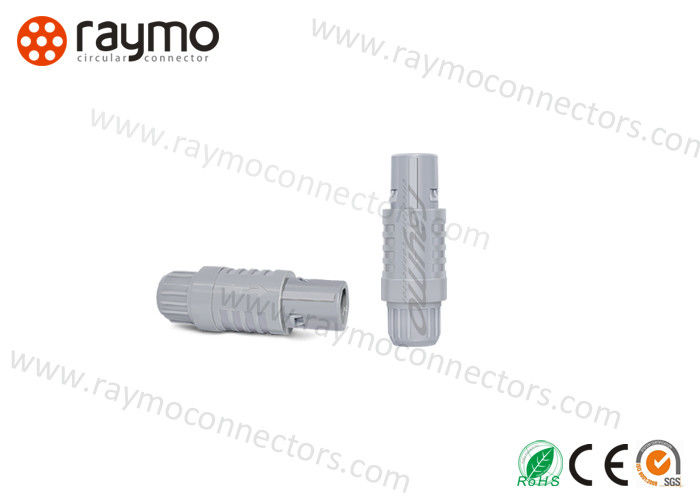

P Series PAG PKG IP50 Circular Plastic Connectors For Medical Device
Alternative Redel P Series PAG PKG Medical Device Plastic Connector
1. Alternative Redel P series push pull plastic connector Prct Description:
RAYMO P series plastic connector can compatible with original Redel P series, with more competitive price, high performance and short lead time, customer think highly of our connectors, and satisfied with the quality.
P series plastic connector are wildly use in area such as medical, industrial, test& meansurement, automotive...
Model type can be: PAG(G, A, B, C, H, J)
PKG(G, A, B, C, H, J)
PLG(G, A, B, C, H, J)
PRG(G, A, B, C, H, J)
Color options: gray(G), green(V), blue(A), black(N), red(R), white(W), yellow(Y).
2. Alternative Redel P series push pull plastic connector techinical characteristics
| Prct attribute |
Attribute Value |
| Manufacturer |
RAYMO |
| Prct name |
Circular push pull plastic connectors |
| Connector type |
Straight plug(PAG)/Panel mount receptacle(PKG/PLG)/Free receptacle(PRG) |
| Contact Gender |
pIN(Male)/Pole(Female) |
| Number of contacts |
2-14 contact |
| Mounting Style |
Cable, Panel |
| Termination Style |
Solder/PCB/Print |
| Current Rating |
2-10A |
| IP Rating |
IP50 |
| Series |
1P |
| Contact Plating |
Gold |
| Shell Material |
PC |
| Certifications |
ISO9001/ CE/ ROHS2.0/ SGS |
| Temperature Range |
-40°C, +150°C |
| Resistance to vibrations |
15 g [10 Hz - 2000 Hz] |
| Shock Resistance |
100 g [ 6 ms] |
| Salt spray corrosion test |
>96hrs |
| Climatical Category |
50/175/21 |
| Cable assembly |
Available |
3. Alternative Redel P series push pull plastic connector with below features:
•Secure high performance push-pull self-locking system
•High pin density contributing to equipment miniaturization
•Contacts from 2-14pins
•Alignment Key and Polarized Keying System to avoid cross-interface
•Colorful nut for choice, easy for identify
•Functional in a wide temperature range from -40°C to +150°C
•Available solder, PCB and right angle PCB contact
4. Alternative Redel P series push pull plastic connector Application
•Medical electronics
•Test and measurement
•Industrial electronics
•Automotive
